Why Use Compression on an Acoustic Guitar...

Screenshot-2023-05-15-at-8.10.24-AM Origin Effects

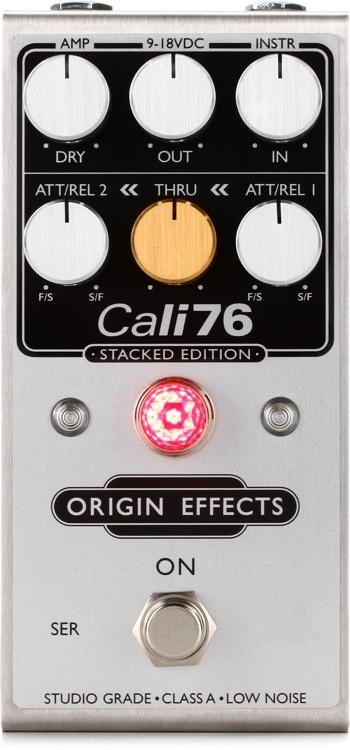

One of my favorite 'bit of kit' is an Origin Effects


Cali76 Stacked Edition Dual-stage Compressor Pedal

NOTE: As an Amazon Associate I earn from qualifying purchases.~

The Cali76 is a single pedal containing a pair of inline stacked compressors. Why compression at the head of my signal path you ask?

Compression is a widely used audio processing technique in acoustic guitar recording and performance. Its primary purpose is to control the dynamic range of the guitar sound, ensuring that the loud and soft parts of the performance are more balanced and consistent. Here's a summary of the use of compression on an acoustic guitar sound:

  1. 1. Dynamic control: Acoustic guitars have a wide dynamic range, meaning the volume can vary significantly between soft and loud passages. Compression helps to tame these dynamics by reducing the level of louder sounds and boosting softer notes. This creates a more even and consistent output.
  2. 2. Sustain enhancement: Compression can increase the sustain of an acoustic guitar. By applying a slower attack time, the compressor allows the initial transient of the guitar's sound to pass through unaffected, while subsequently compressing the sustain portion. This helps in creating a smoother and more prolonged decay of the notes.
  3. Level balancing: Compression ensures a consistent level for the acoustic guitar in a mix. It prevents softer parts from getting lost in the mix while keeping the louder sections from overpowering other instruments or vocals. This allows the guitar to sit well within the overall mix of a song.
  4. Control of finger noise and string squeaks: Acoustic guitars can produce unwanted finger noise and string squeaks, especially during more intricate playing techniques. Compression can help minimize these noises by attenuating the sharp transients associated with them, resulting in a smoother and cleaner guitar sound.
  5. Tone shaping: Compression can subtly alter the tonal characteristics of an acoustic guitar. Depending on the compressor settings, it can emphasize or reduce certain frequencies, enhancing the richness or reducing harshness in the guitar's sound.

It's important to note that the appropriate use of compression depends on the specific requirements of the recording or performance, as well as the desired artistic intent. Different compression settings, such as attack, release, threshold, and ratio, will yield varied results, and experimentation is often necessary to find the optimal settings for a particular acoustic guitar sound.

Why I chose the "Cal76" as my compressor:

The Origin Effects Cali76 Dual Stage Compressor is considered a popular choice for acoustic guitar compression due to several notable features and qualities:

  1. Transparent and studio-grade compression: The Cali76 Dual Stage Compressor is known for its exceptional transparency and studio-quality compression. It maintains the natural dynamics and character of the acoustic guitar sound while providing precise control over the dynamic range. This transparency is crucial for acoustic guitar recordings, where maintaining the instrument's organic and nuanced qualities is often desired.
  2. Dual-stage design: The Cali76 Dual Stage Compressor features a dual-stage design that combines two discrete compression stages. This design allows for more flexibility and control over the compression process. The first stage, known as the "Studio" stage, provides a gentle compression that tames the initial transients while retaining the overall dynamics. The second stage, called the "Squeeze" stage, can provide additional compression if desired, helping to even out sustain and further control the dynamic range.
  3. Low noise and high-quality components: The Cali76 Dual Stage Compressor is built with high-quality components, resulting in low noise and exceptional audio performance. This is especially important for acoustic guitar recordings, as it ensures that the compressor does not introduce any unwanted noise or artifacts into the signal chain.
  4. Versatile control options: The Cali76 Dual Stage Compressor offers a range of control options that make it suitable for various acoustic guitar applications. It features controls for input gain, output level, and separate knobs for adjusting the compression settings of each stage. This versatility allows for precise tailoring of the compression characteristics to suit different playing styles and musical genres.
  5. Build quality and reliability: Origin Effects is known for its high build quality and attention to detail. The Cali76 Dual Stage Compressor is built to withstand the demands of professional use, ensuring long-term reliability and durability.

While the Cali76 Dual Stage Compressor is highly regarded, it's important to note that the choice of a compressor ultimately depends on personal preference and the specific needs of the acoustic guitar player. There are several other reputable compressors available that may also provide excellent results based on individual preferences and the desired sound.

Running the Cali76 somewhere between 'Always on" and "Clean overdrive" creates the  pleasing tone heard at T. Gath's performances. Here are some example setting from the Cali76 owner's manual:


Purchase from Amazon: Cali76 Stacked Edition Dual-stage Compressor Pedal

********************

Here is another compressor pedal (Walrus Mira) demos exquisitely.  The explanations of the nuance of a compressor are well described: https://www.youtube.com/watch?v=XRgapVNHuAk

×
